Description
Product details
| Brand | GreenYi |
| Lux rating | 0.01 Lux |
| Installation Type | Surface Mount |
| Video Capture Resolution | 720p |
| Real Angle of View | 170 Degrees |
| Connector Type | RCA, 4-pin |
- Attention BEFORE Placing order—OUR AHD backup camera supports AHD 1080P 25HZ only. According to our experience, some Android head units has the setting for AHD video signal , but the truth is that they can’t display any AHD image, because they don’t support AHD at all. If so, then you can only apply CVBS video signal, hope you understand. When applying CVBS video signal, the resolution is 720P(1280*720), view angle is 120 degrees.
- AHD 1080P Car Backup Camera—1920×1080 pixels resolution rear view camera with AHD video signal which provides more stable video signal transmission, less interference and delay than CVBS video signal cameras. High definition which is better than 99% reverse cameras, 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof, works properly under car washing or bad weather, fantastic night vision effect., 0.01 Lux starlight night vision ensures high clarity image at any time.
- Double-shielded Video Cable for AHD Rear View Camera—To ensure best video signal transmission-more stable video signal transmission, less interference and delay, no signal attenuation. Pure copper material, with two detection trigger wires for connection with monitors which with detection wire.
- Both AHD and CVBS Video Signal Available, Camera Guideline on / off Adjustable—This rearview camera can work with both AHD(AHD 1080P 25HZ ONLY) and CVBS monitors. Its output video signal is AHD by default, if you need it to connect with a CVBS monitor, please cut the white cable on the camera and reconnect to power supply. AHD video signal image is much clearer than CVBS. It is with guide line by default. If you don’t need it, please cut the green loop and reconnect to power supply.
- Easy Installation—Wire connection is very easy as the picture shows, if your monitor has a detection cable, then you will need to connect the trigger wires on the video cable. The reversing camera must be installed hanging mounted as the pictures shows. Note: Test the camera before final Installation.

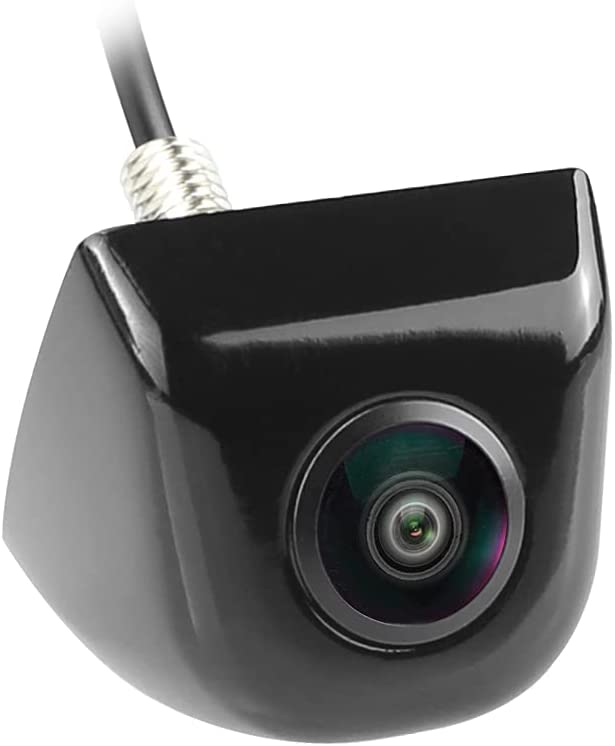

- Mini Shockproof Reversing Camera—The back up camera is very small, its shell is made of high quality zinc alloy, shining, shockproof and stainless.
